Introduction to Deep Learning

In recent years, Deep Learning has made remarkable strides. Deep Learning is a subfield of Machine Learning. Both Deep learning (DL) and Machine learning (ML) are subfields of Artificial Intelligence (AI). Deep learning has evolved faster in the last few years and is an advanced phase of machine learning. The unique thing about Deep Learning is that it makes use of Artificial Neural Networks (ANN), which have similarities with the functioning of a human brain.

Some of the popular applications that have become integral part of our everyday lives are:

Image and Speech recognition: Unlocking smartphones through facial recognition; Object identification while driving autonomous cars; Security cameras installed at our houses, smart door bells.

Natural Language processing (NLP): Chatbots like Siri, Google assistants, and Alexa; Language translation in real-time using Google Translate

Recommendation systems: Netflix and Amazon for movie recommendation.

Robotics: Humanoid robots doing mundane human tasks.

The range of applications is extensive, and each of these examples incorporates deep learning in various ways.

Why do we care about Deep Learning?

Until now the datasets given to us were hand-engineered.For example, the Spambase dataset that we analyzed contained many features such as word frequency and character frequency that were manually engineered ahead of time for us. The specific words chosen for the frequencies (there were 48 such) were carefully selected so that our ML models could perform moderately well. But from the starting point of the “raw” text emails, it is not clear how to engineer those features or which words to choose for the the frequency features.

Extracting meaningful patterns, also known as features, from the data by hand is extremely time consuming and non-scalable, and also needs domain knowledge. Using Deep Learning we can delegate this responsibility of feature extraction and prediction to the machine. Deep learning makes use of Artificial neural networks (ANN), so let’s try to understand what are ANN.

Artificial Neural Networks (ANN)

Artificial neural networks, or just neural networks for short, have been around for several decades. But recently, we are seeing an uptick in the number of applications that make use of neural networks. So let’s try to understand what are some of the factors that have contributed to the increase in use of neural networks in the recent years.

  1. Access to machines with GPUs (Graphical Processing Unit) to run compute-intensive Deep Learning algorithms.

    • DL tasks involve high dimensional data such as audio, text and images. Processing and analyzing this data needs intensive mathematical computations (matrix multiplications), which can be efficiently done on GPUs. For example, the Nvidia Tesla V100 GPU, has about 670 cores for accelerating AI workloads and is available at an affordable cost.

    • Also, training DL models that have millions or billions of trainable parameters (weights and biases), is faster on GPU versus CPU.

  2. Availability of advanced machine learning framework such as TensorFlow [2].

    • TensorFlow is an open-source machine learning framework developed by Google.

    • It provides ecosystem of tools, libraries and resources for building and deploying DL models.

    • TensorFlow is optimized for performance on GPU and TPU (Tensor Processing Unit - AI accelerator developed by Google for running workloads based off of TensorFlow).

    • With TensorFlow we can build a wide range of ANNs — from simple, feedforward NNs to complex DL architectures.

  3. Lastly, easy availability of datasets for training DL models. For example, the ImageNet [1] project has provided over 14 million free images, which has helped in advancing computer vision research.

Basic Idea

Neural networks are mathematical systems that can learn patterns from data and model real-world processes. In this sense, a neural network is just another kind of machine learning model like the ones we have already studied (Linear Classifiers, KNN, Logistic Regression, etc.).

The basic architecture of a neural network is depicted below. Inputs are fed to a series of layers, composed of perceptrons, before ultimately producing an output.

Neuron Anatomy [1]

A perceptron is the basic building block of a neural network. It is a simple mathematical object which can perform computations on numeric values. The definition of a perceptron is inspired from neurons in human brain. The human brain has approximately 82 billion neurons, which work in coordination, and are capable of making decisions and acting upon it within few seconds, based on the input signals received through our senses.

Neuron Anatomy [1]

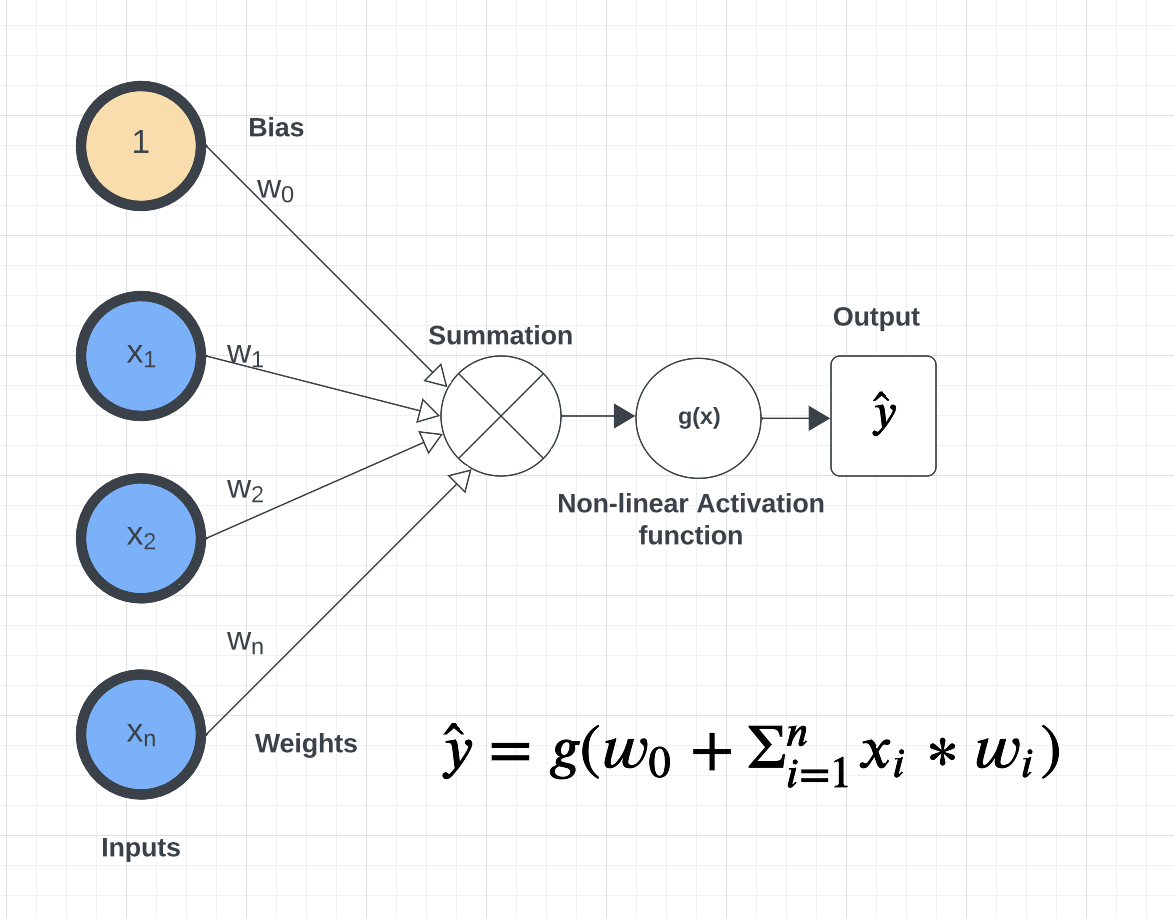

Perceptron

A perceptron is analogous to a single neuron. As mentioned, neural networks are comprised of layers of perceptrons. This perceptron is very much like the perceptron algorithm we discussed in Unit 2 when covering linear classification. The basic architecture of a perceptron is depicted below.

As you can see from the figure above, a perceptron takes an input \(x= [x_i]\), of a fixed length, n, (that is \(i= 1,...,n\)), and maintains a set of weights, \(w=[w_i]\), of the same length, \(n\). Each input is multiplied by the corresponding weight. For example, \(x_1*w_1\), \(x_2*w_2\), and so on to \(x_n*w_n\). We sum the products and finally add the \(w_0\) term, called the bias. Mathematically, the bias term represents the y-intercept of the linear equation associated with the perceptron. The bias together with the set of weights (i.e., the set of values \(w_0, w_1,...,w_n\)) are referred to as the parameters of the perceptron.

Finally, the output is then passed to a non-linear function also known as the activation function. This is the key improvement over the linear classification model we discussed in Unit 2.

Why do we need non-linear functions? The patterns in the data we encounter in the real world are typically highly non-linear. To extract meaningful patterns from these datasets, we need models that are non-linear. In the upcoming lectures we will cover different types of activation functions such as sigmoid, tanh, ReLU, and softmax.

Inference and Training

Inference. Inference refers to the process of making predictions, decisions, or drawing conclusions based on a trained model and input data. Given an input, \(x=(x_1, ..., x_n)\), we can pass it through a neural network whose first layer has number of perceptrons of the same dimension \(n\). Each perceptron produces an output \(y\) which can in turn be passed to any number of perceptrons in another layer, which in turn produces additional outputs. This process continues until reaching the output layer where a final result is computed. The final output is an array of numeric values.

For classification problems, we impose a scheme to derive a class label from a numeric value in the output. As discussed in Unit 2, we can make use of the notion of a decision function where, for a specific class label, C, we predict \(x\in C\) based on the sign of the decision function — if the output is positive, we predict \(x\in C\) while if the output is negative, we predict \(x\not\in C\). Binary classification problems make use of one decision function while multi-label classification problems use one decision function for each possible label.

Training. How should we choose values for the parameters (i.e., the \(w_0, w_1,...,w_n\) for each perceptron) to produce a neural network that is a good predictor? Just like with other models we have seen, we begin with random values for the weights and iteratively adjust them based some labeled data. This process is referred to as “model training”.

The basic idea is similar to other models: we define an error function and associated cost function and iteratively minimize it by updating the parameters. As in the other cases, we use gradient descent to update the parameters in the opposite direction of the gradient.

If \(E\) is the error function, then conceptually, given some parameter \(w\), we would like to update it like so:

\[w_{new} := w_{prev} - \alpha\frac{\partial E}{\partial w}\]

where \(\alpha\) is some small number between 0 and 1 (this is called the “learning rate”) and \(\frac{\partial E}{\partial w}\) is the partial derivation of \(E\) with respect to \(w\).

We find the weights that reduces the error for the entire network. Time permitting we will go over the basics of backpropogation given in the Supplementary material in this lecture.

Building A Neural Network By Hand

What would it take to build a neural network from basic libraries like numpy? We won’t implement a complete solution, but let’s take a look at some of the basic building blocks that we would need.

Implementing a Perceptron and Layer

To implement a neural network, at a minimum we would need functions to:

  1. Create individual perceptrons of a specific size (i.e., dimension) and initialize and maintain that number of weights equal as well as a bias term.

  2. Create layers in our network comprised of a certain number of perceptrons as well as the non-linear activation function to use.

  3. Compute the output of a layer for some input of the appropriate shape.

We could implement a perceptron using a numpy array to hold the weights and bias:

def create_perceptron(dim):
    """
    Create a perceptron of dimension `dim` and initialize it with random weights.
    """
    # we use dim+1 because we want to have a bias term and `dim` weights
    return np.random.random(dim+1)

We could then implement a layer as a certain number of perceptrons with an activation function:

def create_layer(num_perceptrons, dim, activation_function):
    """
    Create a layer of `num_perceptrons` perceptron, each of dimension `dim` with activation function `activation_function`.
    Initialize the weights of all perceptrons to a random float between 0 and 1.
    """
    # represent the layer as a list of dictionary of perceptrons
    layer = []
    for i in range(num_perceptrons):
        layer.append({"weights": create_perceptron(dim), "activation_function": activation_function})
    return layer

We need a way to compute the output of a layer from an input. To do that though, we first need to say a little more about activation functions. Let’s look at the sigmoid activation function in a little more detail.

The sigmoid Activation Function

Let’s look at the sigmoid activation function. Mathematically, sigmoid function is defined as:

\[f(z) = \frac{\mathrm{1} }{\mathrm{1} + e^{-z}}\]

Let’s try to write this as a helper function using Python. The code is pretty simple. You just import numpy and implement the above formula. The sigmoid function returns a value between 0 and 1, which can be interpreted as a probability.

import numpy as np

def sigmoid(z):
    return 1.0 / (1 + np.exp(-z))

Next, let’s try to plot the sigmoid function.

# Import matplotlib, numpy and math
import matplotlib.pyplot as plt
import numpy as np
import math

x = np.linspace(-10, 10, 100)

plt.plot(x, sigmoid(x))
plt.xlabel("x")
plt.ylabel("Sigmoid(X)")

plt.show()

Can someone guess what does the code x = np.linspace(-10, 10, 100) do?

What can you infer about the output from the plot, try giving it a different range (-6 and 6)? It takes any range of real numbers and returns the output value which falls in the range of 0 to 1.

In summary, the sigmoid function:

  • Is differentiable

  • Maps almost all values to a value either very close to 0 or very close 1.

  • Therefore, sigmoid can be used as a decision function for classification problems.

The tanh activation function

Similar to sigmoid, but better. The range of the tanh function is from (-1 to 1). The advantage is that the negative inputs will be mapped strongly negative and the zero inputs will be mapped near zero in the tanh graph.

In summary, the tanh function:

  • Is differentiable

  • Mainly used for classification between two classes.

The ReLU (Rectified Linear Unit) activation function

The ReLU is most popular and simple activation function used today. It is used in almost all the Convolutional Neural network, that we will see in the upcoming lectures.

Range of output is from 0 to infinity. f(z) is zero when z is less than zero and f(z) is equal to z when z is above or equal to zero.

Creating Layers and Computing the Output of Layers

Now that we know how to implement an activation function, we can create a layer with it using the create_layer function we defined previously. For example, let’s create a layer with 5 perceptrons of dimension 3 using the sigmoid activation function we just defined:

>>> l1 = create_layer(5, 3, sigmoid)

Next, we need to implement a function to compute the output of a layer from the input of another layer. Given an input, X, we need to iterate over all of the perceptrons in the layer and compute the dot product with its weights \(w_1,...,w_n\) – note we are starting with \(w_1\), not \(w_0\). We then need to add the \(w_0\) term, as this is the bias before applying the activation function. The ultimate result will be an array of outputs, one for each perceptron in the layer.

Here is an example implementation:

def compute_output_for_layer(X, layer):
    """
    Compute the output of a layer for some input, `X`, a numpy array of
    """
    # our result will be a list of outputs for each perceptron
    result = []
    # for each perceptron in the layer
    for p in layer:
        # compute the dot product of the input with weights w_1, .., w_n and add the bias, w_0
        out = np.dot(X, p['weights'][1:]) + p['weights'][0]
        # then, apply the activation function
        result.append(p['activation_function'](out))
    return result

We can now create an input and compute the output of our layer:

>>> X = [0.8, -2.3, 2.15]
>>> o1 = compute_output_for_layer(X, l1)
>>> o1
[0.294773293601466,
0.29064381699480163,
0.7720800756699581,
0.9238752623623957,
0.4755367087316097]

If we wanted to add a second layer to our network, we could do that. To pass the output of this layer to the input of the next layer, we require the input dimension of the perceptrons in the next layer that will process the outputs to be the same input dimension as the output dimension. If we want a fully connected network, where the output of every perceptron in one layer is passed as an input to every perceptron in the next layer, then the input dimension of the next layer must equal the number of of perceptrons in the previous layer.

In the code below, we create a second layer with 2 perceptrons of dimension 5.

>>> l2 = create_layer(2, 5, sigmoid)

We can pass the output of l1 as the input to l2:

>>> o2 = compute_output_for_layer(o1, l2)
>>> o2
[0.8332717112765128, 0.8277819032135856]

Proceeding in this way, we could create networks of arbitrary depth. Of course, we would also need a way to update the weights based on input samples (i.e., training data). Fortunately, we can use a library that makes all of this much easier.

TensorFlow

A very powerful python library for building neural networks called TensorFlow is available for us to use. Developed by Google, TensorFlow provides both a low-level and a high-level API. The high-level API is referred to as Keras and is the API you will almost always want to use unless you are implementing your own algorithms for low-level tasks, such as training. We will look at Keras in the next section, but in this section we give a quick introduction to the low-level TensorFlow API.

We begin by importing the library. It is customary to import tensorflow as tf:

import tensorflow as tf

The basic building block in TensorFlow is the tensor. Some of you studying Physics may have heard of tensors in terms of its use in General Relativity. For this class, let’s just stick to defining tensors as multi-dimensional arrays with a uniform datatype. You can think of tensors as similar to numpy’s ndarrys.

In-Class Exercise: Before we move on, lets create some basic tensors.

  1. Rank-0 or scalar Tensor. It is a scalar with constant value and no axes.

>>> rank_0_tensor = tf.constant(4)
>>> print(rank_0_tensor)

If you run the code above, the output should be:

tf.Tensor(4, shape=(), dtype=int32)

From Linear Algebra you may recall that scalars only have magnitude but no direction. Hence, a rank-0 or scalar tensor has no shape.

  1. Rank-1 tensor. You can simply consider it as 1-D array.

# Let's make this a float tensor.
>>> rank_1_tensor = tf.constant([2.0, 3.0, 4.0])
>>> print(rank_1_tensor)

What is the output of above code?

Can you construct a rank-2 tensor or simply a 2X3 matrix?

>>> rank_2_tensor = tf.constant([[1,2,4],
                                 [5,6,7]])
>>> print(rank_2_tensor)

Similarly, we can create higher order tensors. See the documentation for more information [3].

TensorFlow also provides implementations of the mathematical functions which we will be using when building Neural Networks. For example, we can use off the shelf TensorFlow functions for the activation functions we want to use in our perceptrons.

Examples:

tf.math.sigmoid(z)
tf.math.tanh(z)
tf.nn.relu(z)

You would have noticed the last one is taken from the neural networks API (i.e., the nn module) of TensorFlow. You can also get similar APIs from TensorFlow Keras, which we are also going to use for building Neural Networks.

Let’s try to build a simple neural network using Keras.

Building a First Neural Network with TensorFlow Keras

TensorFlow Keras refers to the high-level neural networks API provided by TensorFlow. Keras is integrated directly into TensorFlow, making it easy to build and train neural networks with TensorFlow as the backend. Keras covers every step of machine learning from data preprocessing to hyperparameter tuning to deployment. Every TensorFlow user should use Keras by default, unless they are building their tools on top of TensorFlow.

Core data structure of Keras is Models and Layers. A layer is simple input/output transformation and model is a directed acyclic graph (DAG) of layers.

Layers encapsulates weights and biases whereas, Model groups the layers together and can be trained on the data.

Simplest model is a Sequential model, which is a linear stack of layers. You can build complex architectures with Keras functional API, or use subclassing to write models from scratch.

In the example below, you will see how easy it is to build a simple neural network with Keras. We will build a sequential model to classify the Iris dataset we looked at in Unit 2.

Loading the Data

Before we get started building the model, let’s import the dataset and remember its basic characteristics:

from sklearn import datasets
iris = datasets.load_iris()

# the independent variables
iris.data.shape
#(150, 4)

# the dependent variables
iris.target.shape
#(150, 0)

Let’s split the data into train and test sets and one hot encode the target variable.

from sklearn.model_selection import train_test_split
from tensorflow.keras.utils import to_categorical

X = iris.data
y = iris.target

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, stratify=y, random_state=1)

y_train_encoded = to_categorical(y_train)
y_test_encoded = to_categorical(y_test)

Building the Model

Step 1: Import Modules from Keras and Initialize the Model

The simplest type of model is the Sequential model, which is a linear stack of layers. Since we will be creating a sequential neural network model we import Sequential from Keras.model. We will also have one or more densely connected hidden layer, hence we import Dense from Keras.Layers.

from keras.models import Sequential
from keras.layers import Dense

We use the Sequential() constructor to create a new model object:

model = Sequential()

Step 2: Add Layers to the Model

We add layers to the model using the add method. In this case:

  • The first layer added is a dense (fully connected) layer with 4 perceptrons and an input_dim=4. We could have chosen any number of perceptrons here, but we must specify an input dimension since it is the first layer. Moreover, the input dimension must match the shape – i.e., number of features – of our input. Since there are 4 features in the Iris dataset, we use an input dimension of 4. Finally, we use the ReLU activation function.

  • The second layer added is another dense layer with 128 perceptrons. Note that we do not specify an input dimension because Keras can infer the dimension because it must match the output dimension from the previous layer. (Question: what should the input dimension be)?

  • The third layer will be the last layer in our model. This layer represents the output layer so we need the output dimension (i.e., the number of perceptrons) to match the number of labels in our target. Since there are 3 possible labels (0, 1 and 2), we use a layer with 3 perceptrons. And again, like the previous layer, we do not need to specify the input dimension as it can be inferred from the output dimension of the previous layer. Finally, we use the softmax activation function.

# Our input layer can have any number of perceptrons, we chose 4, however,
# the input dimension must match the number of features in the independent variable -- therefore, we set
# it to 4
model.add(Dense(4, input_dim=4, activation='relu'))

# we can add any number of hidden layers with any number of perceptrons; here we choose 1 layer with 128 perceptrons. The
# hidden layers should all use RELU
model.add(Dense(128, activation='relu'))

# softmax activation function is selected for multi-label classification problems; there are 3 perceptrons in this
# last layer because there are 3 target labels to predict (it matches the shape of y)
model.add(Dense(3, activation='softmax'))

Step 3: Compile the Model and Check Model Summary

Next step is to compile the model using the compile method. With compile, you can configure the model for tarining. For example, model.compile can take following arguments

Note : This is an example, do not run this code to compile your model.

Model.compile(
    optimizer="rmsprop",
    loss=None,
    loss_weights=None,
    metrics=None,
    weighted_metrics=None,
    run_eagerly=False,
    steps_per_execution=1,
    jit_compile="auto",
    auto_scale_loss=True,
)

optimizer :This parameter specifies the optimizer to use during training. Optimizers are algorithms or methods used to change the attributes of your neural network such as weights and learning rate to reduce the losses. Examples: “rmsprop”, “adam”, “sgd” (Stochastic Gradient Descent), etc. Learning rate is a crucial hyperparameter, it determines the size of step the optimizer must take while updating weights. We can set what learning rate in the model.compile, optimizer part.

loss: This parameter specifies the loss function to use during training. The loss function measures how well the model performs on the training data and guides the optimizer in adjusting the model’s parameters. Examples: “sparse_categorical_crossentropy”, “mean_squared_error”, “binary_crossentropy”, “categorical_crossentropy”, etc. Choice of loss function depends on nature of problem. 1. Binary Classification: Binary Crossentropy 2. Multi-Class Classification: Categorical Crossentropy, Sparse Categorical Crossentropy 3. Regression: Mean Squared Error (MSE), Mean Absolute Error (MAE)

metrics: This parameter is a list of metrics to evaluate the model’s performance during training and testing. Examples: [“accuracy”], [“accuracy”, “precision”, “recall”], etc.

You need to provide appropriate values for these parameters based on your specific task and model architecture.

In the Iris example when we compile the model, we specify optimizer (Adam), the loss function (categorical_crossentropy, suitable for multi-label classification problems), and metrics to evaluate during training (accuracy).

Time permiting we will look at different types of optimizers.

model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

Let’s now print and explore the model summary:

model.summary()

The output should look similar to the following:

Model: "sequential"
_________________________________________________________________
Layer (type)                Output Shape              Param #
=================================================================
dense (Dense)               (None, 4)                 20

dense_1 (Dense)             (None, 128)               640

dense_2 (Dense)             (None, 3)                 387

=================================================================
Total params: 1047 (4.09 KB)
Trainable params: 1047 (4.09 KB)
Non-trainable params: 0 (0.00 Byte)

Let’s break down the summary:

Model. The type of model of listed, in this case it is a Sequential model

Layer (type). Each layer in the model is listed along with its type. For example, “dense” indicates a fully connected layer. Recall that we had 3 total layers: one input layer with 4 perceptrons, one “hidden” layer with 128 perceptrons, and one output layer with 3 perceptrons.

Output Shape. The output shape of each layer. The (None, 4) means that the output of this particular layer is a 2D tensor with a variable batch size and 4 elements in the second dimension. Note that the output dimension is the same as the number of perceptrons for the layer, which is what we would expect for a fully connected network (i.e., dense layers).

Param #. The number of parameters (weights and biases) in each layer. In the first dense layer there are 4 perceptrons, the input dimension was 4 and there is a 1 bias term with each perceptron. Therefore, the first layer has a total of \(4*4 + 4 = 20\) parameters.

Similarly, the second layer has 128 perceptrons each with an input dimension equal to the output dimension of the first layer, which is 4. Thus, each of the 128 perceptrons has \(128+1=129\) parameters, and therefore the entire layer has \(128*4 + 128 = 640\) parameters.

Exercise. Convince yourself that there are 387 parameters in the last layer.

Step 4: Train the model.

Just like when using sklearn, once we have our model constructed we are ready to train the model. We use the fit() function, like with sklearn, but keep in mind this is a different fit() function that takes different arguments. We’ll look at just a few of the more important ones here:

  • x and y – The input and target data, respectively. A number of valid types can be passed here, including numpy arrays, TensorFlow tensors, Pandas DataFrames, and others.

  • epochs – The number of complete passes over the entire training dataset that will be performed during training.

  • batch_size – The number of samples per gradient update.

Note

The choice of batch_size can affect the memory usage while fitting the model. Bigger batch sizes can sometimes cause out of memory issues.

  • validation_split – The percentage, a a float, of the dataset to hold out for validation. Keras will compute the validation score at the end of each epoch.

  • verbose – (0, 1, or 2). An integer controlling how much debug information is printed during training. A value of 0 suppresses all messages.

>>> model.fit(X_train, y_train_encoded, validation_split=0.1, epochs=20, verbose=2)

Epoch 1/20
4/4 - 2s - loss: 1.1249 - accuracy: 0.3519 - val_loss: 1.0253 - val_accuracy: 0.5000 - 2s/epoch - 611ms/step
Epoch 2/20
4/4 - 0s - loss: 1.0801 - accuracy: 0.3519 - val_loss: 1.0169 - val_accuracy: 0.5000 - 172ms/epoch - 43ms/step
Epoch 3/20
4/4 - 0s - loss: 1.0709 - accuracy: 0.3519 - val_loss: 1.0191 - val_accuracy: 0.5000 - 168ms/epoch - 42ms/step
Epoch 4/20
4/4 - 0s - loss: 1.0632 - accuracy: 0.3519 - val_loss: 0.9996 - val_accuracy: 0.5000 - 108ms/epoch - 27ms/step
Epoch 5/20
4/4 - 0s - loss: 1.0529 - accuracy: 0.3519 - val_loss: 0.9879 - val_accuracy: 0.5000 - 67ms/epoch - 17ms/step
Epoch 6/20
4/4 - 0s - loss: 1.0382 - accuracy: 0.3519 - val_loss: 0.9851 - val_accuracy: 0.5000 - 60ms/epoch - 15ms/step
Epoch 7/20
4/4 - 0s - loss: 1.0252 - accuracy: 0.3519 - val_loss: 0.9656 - val_accuracy: 0.5000 - 59ms/epoch - 15ms/step
Epoch 8/20
4/4 - 0s - loss: 1.0138 - accuracy: 0.3519 - val_loss: 0.9580 - val_accuracy: 0.5000 - 44ms/epoch - 11ms/step
Epoch 9/20
4/4 - 0s - loss: 0.9976 - accuracy: 0.3704 - val_loss: 0.9508 - val_accuracy: 0.5833 - 59ms/epoch - 15ms/step
Epoch 10/20
4/4 - 0s - loss: 0.9806 - accuracy: 0.5093 - val_loss: 0.9383 - val_accuracy: 0.5833 - 43ms/epoch - 11ms/step
Epoch 11/20
4/4 - 0s - loss: 0.9630 - accuracy: 0.6204 - val_loss: 0.9244 - val_accuracy: 0.7500 - 43ms/epoch - 11ms/step
Epoch 12/20
4/4 - 0s - loss: 0.9414 - accuracy: 0.6667 - val_loss: 0.9122 - val_accuracy: 0.7500 - 67ms/epoch - 17ms/step
Epoch 13/20
4/4 - 0s - loss: 0.9172 - accuracy: 0.6852 - val_loss: 0.8912 - val_accuracy: 0.7500 - 60ms/epoch - 15ms/step
Epoch 14/20
4/4 - 0s - loss: 0.8898 - accuracy: 0.6852 - val_loss: 0.8648 - val_accuracy: 0.7500 - 46ms/epoch - 11ms/step
Epoch 15/20
4/4 - 0s - loss: 0.8599 - accuracy: 0.6852 - val_loss: 0.8314 - val_accuracy: 0.7500 - 63ms/epoch - 16ms/step
Epoch 16/20
4/4 - 0s - loss: 0.8294 - accuracy: 0.6852 - val_loss: 0.7960 - val_accuracy: 0.7500 - 63ms/epoch - 16ms/step
Epoch 17/20
4/4 - 0s - loss: 0.7998 - accuracy: 0.6852 - val_loss: 0.7767 - val_accuracy: 0.7500 - 44ms/epoch - 11ms/step
Epoch 18/20
4/4 - 0s - loss: 0.7692 - accuracy: 0.6852 - val_loss: 0.7561 - val_accuracy: 0.7500 - 59ms/epoch - 15ms/step
Epoch 19/20
4/4 - 0s - loss: 0.7445 - accuracy: 0.6852 - val_loss: 0.7424 - val_accuracy: 0.7500 - 44ms/epoch - 11ms/step
Epoch 20/20
4/4 - 0s - loss: 0.7152 - accuracy: 0.6852 - val_loss: 0.7106 - val_accuracy: 0.7500 - 61ms/epoch - 15ms/step

You can read more about the parameters available to the fit() function in the documentation [6].

Step 5: Evaluate the model on test data

We evaluate the model’s performance on test dataset using the evaluate method.

# Evaluate the model on the test set
test_loss, test_accuracy = model.evaluate(X_test, y_test_encoded, verbose=0)
print("Test Loss:", test_loss)
print("Test Accuracy:", test_accuracy)

With these steps we were able to set up a simple feedforward neural network using Keras with three dense layers (input, hidden and output) and specify the model’s architecture, compilation parameters, and makes predictions on some input data.

Exercise: Can you walk through this code and tell what’s happening?

from keras.models import Sequential
from keras.layers import Dense

model = Sequential()

model.add(Dense(64, input_dim=10, activation='relu',))
model.add(Dense(32, activation='relu'))
model.add(Dense(1, activation='sigmoid'))

model.summary()

Supplement: Feed-Forward Networks and Backpropagation

If \(E\) is the error function, then conceptually, given some parameter \(w\), we would like to update it like so:

\[w_{new} := w_{prev} - \alpha\frac{\partial E}{\partial w}\]

where \(\alpha\) is some small number between 0 and 1 (this is called the “learning rate”) and \(\frac{\partial E}{\partial w}\) is the partial derivation of \(E\) with respect to \(w\). But how do we view the error as a function of a given parameter, \(w\), and, moreover, how do compute the partial derivative?

In the case of a neural network with layers of perceptrons, each with their own parameters, the relationship between the error function and a specific parameter, \(w\), depends on the location of the parameter in the network.

To illustrate, let us assume that the network is structured so that outputs of perceptrons on one layer get fed as inputs to the next layer – that is, there are no cycles or “loops” between perceptrons across layers. Such neural networks are called “feed-forward networks” because the outputs are fed forward.

In such a network, we can think of the individual layers as intermediate functions that the input passes through. Let us assume we have \(n\) layers and let \(L_j\) denote the function for layer \(j\). Then, conceptually, we compute an output \(y\) from an input \(X\) by passing it through each layer:

\[y = L_n( L_{n-1} ( \ldots ( L_2 (L_1(x)) ) \ldots ) )\]

or, in function composition notation:

\[y = L_n \circ L_{n-1} \circ \ldots \circ L_2 \circ L_1(x)\]

Since the error is similar to the difference between the output and some constant, we have

\[E \approx L_n \circ L_{n-1} \circ \ldots \circ L_2 \circ L_1(x) - y_{actual}\]

Any parameter \(w\) is a parameter of some perceptron in some layer. This shows that the error is indeed a function of every parameter. But what would be involved in computing the partial derivatives?

If the \(w\) we are interested in is in the last layer (i.e., \(L_n\) or the “output layer”), then in fact this is a straightforward partial derivative. On the other hand, for \(w\) in an intermediate layer, to compute the partial derivative we will need to use the chain rule and the result will involve the layers after it. For example, for a network with two layers:

\[ \begin{align}\begin{aligned}E \approx L_2 \circ L_{1}(w) \implies\\\frac{\partial E}{\partial w} \approx \frac{\partial L_2}{\partial L_1}\frac{\partial L_1}{\partial w}\end{aligned}\end{align} \]

This suggests that we compute the derivatives “backwards” – that is, starting with the last layer and working back through the network to the first layer. This process is called “backpropagation” and is an important algorithm for updating the weights in a neural network.

References:

  1. ImageNet[https://www.image-net.org/index.php]

  2. TensorFlow [https://www.tensorflow.org]

  3. Creating tensors [https://www.tensorflow.org/guide/tensor]

  4. Bias [https://towardsdatascience.com/why-we-need-bias-in-neural-networks-db8f7e07cb98]

  5. Keras [https://www.tensorflow.org/guide/keras]

  6. Keras Documentation: Model fit. https://www.tensorflow.org/api_docs/python/tf/keras/Model#fit
