Convolutional Neural Networks (CNNs)

In this lecture, we will introduce Convolutional neural networks (CNNs) - a class of deep neural networks primarily used in image recognition and computer vision tasks. We will also discuss why CNNs are prefered over ANNs for image classification. Although CNNs are a popular choice for image classification, they can also be used in Natural Language processing applications.

By the end of this module, students should be able to:

Understand challenges associated with ANNs.
What makes CNN a better choice for solving image classification problems
Understand different CNN Architectures: For example: VGG16 and LeNet-5

Challenges with ANN

In the previous lecture, we saw an example of handwritten digit classification using ANNs.

We were able to achieve high prediction accuracy by an ANN model with multiple hidden layers. Let’s say we want to build a similar ANN model to distingush between images of cats and dogs. Images provided to us are of same size 28x28 pixels.

We know that the neural network takes input that has to be a flattened 1D vector. In the example above, the input vector provided to the neural network will be of size 784x1. We can add one or more hidden layers, and our output layer will have two classes, probabilities showing whether a given image is a cat or a dog.

While our neural network model can perform well on certain test data, we cannot guarantee it performs well on other. This is because of following limitations with ANNs:

1. Lack Spatial Information Preservation: ANNs treat input data as flat vectors, disregarding the spatial relationships present in the image. As seen in previous examples, we input a 1D array of pixel intensities to the neural network, which is formed by flattening the 2D array of size 28x28 pixels. Unfortunately, this arrangement causes loss of spatial information associated with the image. For example, while detecting the cat’s pointy ears, with ANNs we may not know which two or more pixels, placed next to each other formed a pointy edge of cat’s ears, which could be a distinguishing feature to differentiate between a cat and a dog. In contrast, CNNs preserve the spatial structure of images through convolutional and pooling layers, allowing them to capture local patterns and spatial hierarchies effectively.

2. Translation Invariance: ANNs lack translation invariance, meaning they cannot recognize objects if their position in the image changes. For example, ANNs might excel at predicting cats that are on the left side of an image. They may fail to recognize if the same picture is translated, rotated or cropped. CNNs on the other hand use a small filter also known as kernel in the convolutional layer, which is slided across the entire image to learn hierarchical features in an image.

3. Fature Hierarchies: ANNs do not automatically learn hierarchical representations of features. In CNNs, lower layers learn low-level features like edges and textures, while higher layers learn more abstract features like shapes and objects.

4. High Dimensionality: Dealing with the exponentially growing number of trainable parameters is also one of the major challenges with ANNs. Even with simpler grayscale images of size 28x28 pixels, the number of trainable parameters can easily exceed several hundreds or thousands. If we were to work with color images of higher resolution, the number of trainable parameters would be to the order of millions. This means that it could take a significant amount of time to train such models even with powerful compute hardware. CNNs with convolutional and pooling layer have much smaller parameter footprint and are can be computationally less expensive in many cases.

Considering the above challenges we will see how Convolutional Neural Networks can address them.

Convolutional Neural Networks (CNNs)

Convolutional Neural Networks (CNNs) are specifically designed for processing structured grid data, such as images and videos. They possess a unique capability of identifying the location of an object in an image by performing a mathematical operation known as convolution. This capability also enables them to handle shifts and translations in the position of objects within an image, which makes them an ideal choice for solving computer vision problems such as image classification, object detection, face recognition, and autonomous driving, among others. For instance, CNNs can provide accurate predictions even when presented with translated, rotated, or cropped images of cats.

As we discussed, the secret lies in two simple yet powerful layers of CNN, known as the convolutional and pooling layers.

Convolutional Layer:

In CNNs, convolution layer is the first layer that is applied to input data, to filter information and produce a feature map. You can think of these filters as a sliding window moving accross the image, trying to detect features or local patterns in an image. For example, if we are detecting a human face in the image, filters could detect low-level features such as horizontal edges, vertical edges, curves, corners, etc. Based on the combinations of these low-level features, next set of filters could determine eyes, nose, ears, etc.

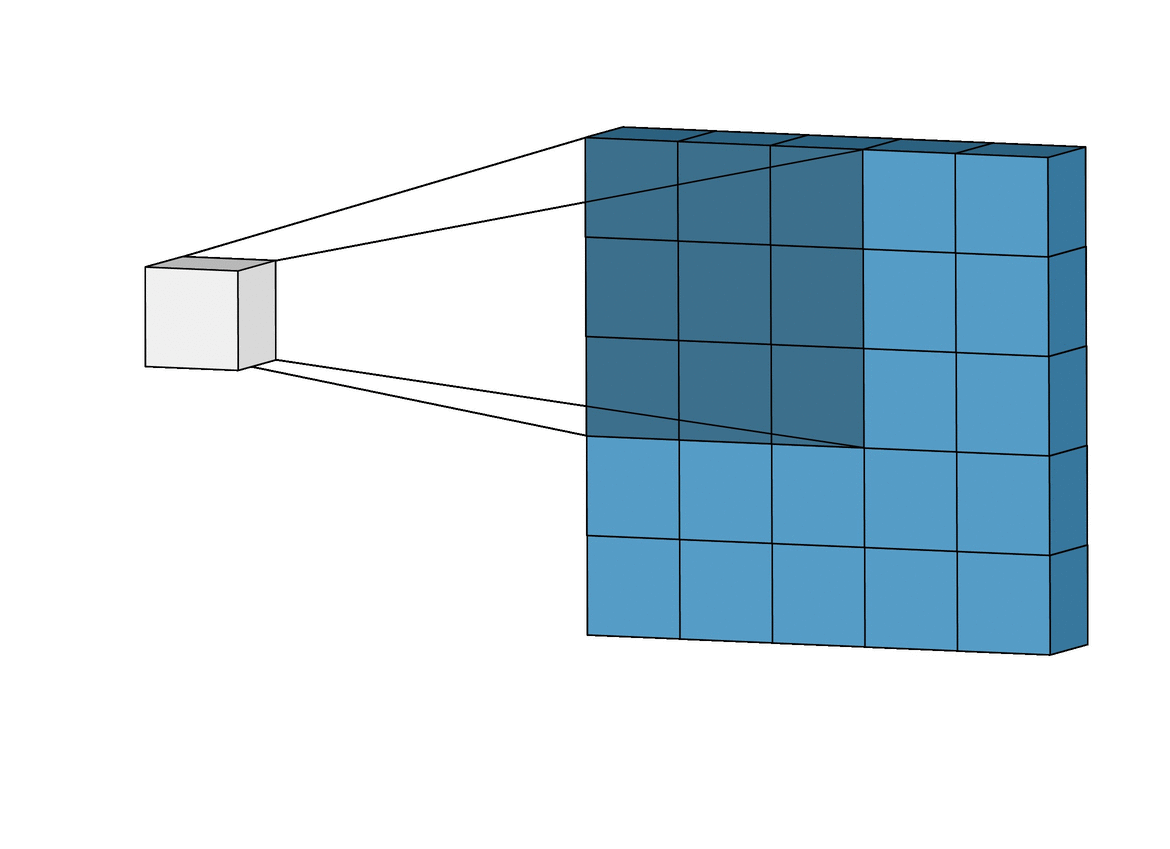

(Animation credit [1] )

In the above animation, you can see how a \(3x3\) window slides across the image of size \(5x5\) and builds a feature map of size \(3x3\) using the convolution operation. Let’s understand the convolution operation that is performed when the kernel/filter slides across the input image with example below. Each filter in a CNN has a set of learnable parameters, which are the weights. These weights are adjusted during the training process through backpropagation and gradient descent to learn meaningful features from the input data. The weights in a filter determine the specific patterns or features that the filter is sensitive to.

We have a \(5x5\) input data and we apply a \(3x3\) 2D filter to it for feature learning. We sum up the element-wise dot products of the input and filter and move the sliding window by 1 cell until the feature map is complete. Since we move each time by 1 cell, we say the stride length is one. If we were to move by two cells, the stride length would have been 2. Once our feature map is ready, activation function is applied element-wise to every element in the feature map which is then passed on to the next layer, Pooling layer. The dimension of the feature map can be computed mathematically as \((n-f+1) X (n-f+1)\), where n is the input dimension, and f is the filter dimension. Therefore, in this case, our output will be of size \((5-3+1)X(5-3+1)= 3x3\).

To summarize a convolutional layer is responsible for recognizing features in an image. A CNN can have more than one convolutional layers. These multiple convolutional layers enable the network to learn increasingly complex and abstract features from the input data. Having multiple convolutional layers allows the network to capture hierarchical representations of the input data. Lower layers typically learn low-level features such as edges, corners, and textures, while higher layers learn higher-level features or combinations of lower-level features that represent more abstract concepts, such as object parts or entire objects.

Convolutional layers also achieve a degree of translational invariance through parameter sharing. The same set of filter weights is applied across all spatial positions of the input feature maps. As a result, the learned features are invariant to small translations or shifts in the input data. For example, if a filter learns to detect a horizontal edge in one region of the image, it can also detect the same edge in a slightly shifted position due to parameter sharing.

Due to the way convolution operates, the pixels from corners of the image will be used fewer times in outputs as compared to middle pixels, which gets used in while deriving many outputs from the sliding window. Thus we lose information on the edges of images.

To avoid this we use a technique known as Padding, which adds a layer of zeros on the outer edges of image, thereby making the image bigger and preserving the pixels from image corners.

Pooling Layer

In CNNs pooling layer is applied after the convolutional layer. The purpose of doing this is to reduce the size of feature map. The pooling operation summarizes the features present in the filtering region. Let’s say our feature map is of size \(4x4\) and our pooling filter is of size \(2x2\), then with pooling operation we can summarize the feature map to \(2x2\), thereby reducing the number of trainable parameters.

Lesser number of training parameters means faster computation. Size of pooling filter selected is usually much smaller than size of feature map.

Two popular methods of pooling are:

Max Pooling
Average Pooling

With Max Pooling the summary of features is represented by max values in that region. It is typically used when the image has dark background to bring up the brighter pixels.

With Average Pooling the summary of features is represented by average values in that region.

With the understanding of Convolutional and Pooling Layers we are now ready to put it all the building blocks together and construct a CNN model.

Basic CNN Architecture

CNNs are primarily made from the building blocks: Convolutional layer, pooling layer, flatten and fully connected dense layers.

Convolutional layer along with the activation function and pooling layer are referred to feature extraction stage. Whereas, flatten layer and dense layer (ANN) comprise of the prediction stage. The output of convolutional and pooling layers in CNNs is typically in the form of multi-dimensional feature maps, where each feature map represents the activation of neurons at different spatial locations.

In convolutional layer, a filter is applied to the input image and based on the size of filter, a feature map is created. When creating a convolutional layer we specify the number of filters and it’s size. Adding a convolutional layer is very straightforward with TensorFlow Keras layers

from tensorflow.keras.layers import Conv2D
# Intializing a sequential model
model = Sequential()
model.add(Conv2D(64, (3, 3), activation='relu', padding="same", input_shape=(28, 28, 1)))

In the model.add we are creating a 2D convolutional layer with 64 filters of size \(3x3\). activation='relu': This parameter specifies the activation function applied to the output of the convolutional layer. ReLU (Rectified Linear Unit) is a commonly used activation function in convolutional neural networks.

padding='same': This parameter specifies the type of padding to be applied to the input feature maps before performing the convolution operation. “Same” padding means that the input is padded with zeros so that the output has the same spatial dimensions as the input. This helps preserve spatial information at the edges of the feature maps.

input_shape=(28, 28, 1): This parameter specifies the shape of the input data that will be fed into the model. In this case, the input data is expected to have a shape of (28, 28, 1), indicating that it consists of 28x28 grayscale images (1 channel). The (28, 28, 1) tuple represents (height, width, channels).

After adding a convolutional layer we add a pooling layer, either MaxPooling or AveragePooling.

model.add(MaxPooling2D((2, 2), padding = 'same'))

We can keep adding a series of convolutional and pooling layers, before flatten the output and provide to fully connected Dense layers to produce the final output. You must be wondering as why we need a flatten layer. The Flatten layer in a Convolutional Neural Network (CNN) is necessary to transition from the spatially structured representation of data obtained from convolutional and pooling layers to a format suitable for fully connected layers, which are typically used for making predictions or classifications.

# Series of alternating convolutional and pooling layers
model.add(Conv2D(32, (3, 3), activation='relu', padding="same"))
model.add(MaxPooling2D((2, 2), padding = 'same'))
model.add(Conv2D(32, (3, 3), activation='relu', padding="same"))
model.add(MaxPooling2D((2, 2), padding = 'same'))

# flattening the output of the conv layer after max pooling to make it ready for creating dense connections
model.add(Flatten())

# Adding a fully connected dense layer with 100 neurons
model.add(Dense(100, activation='relu'))

# Adding the output layer with num_classes and activation functions as softmax for class classification problem
model.add(Dense(num_clases, activation='softmax'))

Formula for calculating trainable parameter in each layer is \((Filter\_Size * Filter\_Size * Size\_of\_input\_channel +1 ) * number\_of\_filters\)

Solving the Fashion MNIST classification example with CNNs

In Step 2, image processing we dont flatten the image, so we dont reshape the X_train and X_test, we would just normalize them. Step 3 remains same. Step is where we implement the CNN model.

Step1: Load the data

# Loading the data
from tensorflow.keras.datasets import fashion_mnist
(X_train, y_train), (X_test, y_test) = fashion_mnist.load_data()

Step2: Normalize the data

X_train_normalized = X_train / 255.0
X_test_normalized = X_test / 255.0

Step 3: Convert y to categorical using one hot encoding

from tensorflow.keras.utils import to_categorical

# Convert to "one-hot" vectors using the to_categorical function
num_classes = 10
y_train_cat = to_categorical(y_train, num_classes)

Step 4: Build the CNN model

# Importing all the different layers and optimizers
from tensorflow.keras.layers import Dense, Dropout, Flatten, Conv2D, MaxPooling2D
from tensorflow.keras.optimizers import Adam

# Intializing a sequential model
model_cnn = Sequential()

# Adding first conv layer with 64 filters and kernel size 3x3 , padding 'same' provides the output size same as the input size
# Input_shape denotes input image dimension of MNIST images
model_cnn.add(Conv2D(64, (3, 3), activation='relu', padding="same", input_shape=(28, 28, 1)))
# Adding max pooling to reduce the size of output of first conv layer
model_cnn.add(MaxPooling2D((2, 2), padding = 'same'))

model_cnn.add(Conv2D(32, (3, 3), activation='relu', padding="same"))
model_cnn.add(MaxPooling2D((2, 2), padding = 'same'))

model_cnn.add(Conv2D(32, (3, 3), activation='relu', padding="same"))
model_cnn.add(MaxPooling2D((2, 2), padding = 'same'))

# flattening the output of the conv layer after max pooling to make it ready for creating dense connections
model_cnn.add(Flatten())

# Adding a fully connected dense layer with 100 neurons
model_cnn.add(Dense(100, activation='relu'))

# Adding the output layer with 10 neurons and activation functions as softmax since this is a multi-class classification problem
model_cnn.add(Dense(10, activation='softmax'))

Step 5: Let’s compile and fit it.

model_cnn.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
model_cnn.summary()
model_cnn.fit(X_train_normalized, y_train_cat, validation_split=0.2, epochs=5, batch_size=128, verbose=2)

You must have noticed the difference between number of trainable parameters in CNN vs ANN. Also the validation accuracy? What can say about it?

CNN Architectures

Different CNN architectures have emerged in the past, some of the popular ones are:

LeNet-5
VGG16
GoogleNet
AlexNet

They all have some specific use cases where they can be used. More on the architectural details is given in [2]. In this lecture, we will cover some basics of VGG16 and LeNet-5.

VGG16

The VGGNet architecture was proposed by Karen Simonyan and Andrew Zisserman, from the Visual Geometry Group (VGG) at the University of Oxford, in 2014 [3]. It even finished first runner-up in the ImageNet annual competition (ILSVRC) in 2014.

VGGNet has two variants: VGG16 and VGG19. Here, 16 and 19 refer to the total number of convolution and fully connected layers present in each variant of the architecture.

VGGNet stood out for its simplicity and the standard, repeatable nature of its blocks. Its main innovation over standard CNNs was simply its increased depth (number of layers) - otherwise it utilized the same building blocks - convolution and pooling layers, for feature extraction

Paper:VGG16 [https://arxiv.org/pdf/1409.1556v6.pdf]

VGG16 architecture explained: 1. Input Layer: Input to VGG16 is a RGB image of 224x224 pixels.

2. Convolutional Layer: It contains 13 convolutional layers, each followed by ReLU activation function, and a MaxPooling Layer. These convolution layer uses small 3x3 kernels, with stride =1 pixel. The number of filters in each convolutional layer increases as we go deeper into the network, from 64 filters in the first few layers to 512 filters in the later layers.

3. MaxPooling Layer: Each convolutional block can have more than 1 convolutional layer. After each convolutional block we have MaxPooling layer with a 2x2 window and a stride of 2. Max-pooling is used to reduce the spatial dimensions of the feature maps while retaining the most important features.

4. Fully Connected Layer: After the last convolutional block, VGG16 has 3 fully connected dense layers, followed by softmax for classification. The first two fully connected layers have 4096 neurons each, followed by a third fully connected layer with 1000 neurons, which is the number of classes in the ImageNet dataset for which VGG16 was originally designed.

VGG16 is available in the keras.applications package and can be imported using following code.

from keras.applications.vgg16 import VGG16

VGG16 model can be created this one line code

model_vgg16 = VGG16(weights='imagenet')

To check the number of trainable parameters look at the summary of model

model_vgg16.summary()

LeNet-5

It is one of the earliest pre-trained models proposed by Yann LeCun and others. It was originally trained to run hand written digit classification from 0-9, of the MNIST dataset. LeNet-5 was designed to be computationally efficient, making it suitable for training on relatively small datasets and deploying on resource-constrained devices. The architecture is relatively simple compared to more modern deep learning architectures, which makes it easy to understand, implement, and debug.

It cannot be directly imported from Keras applications. So we will have to implement it using keras sequential model as follows:

model = Sequential()

# Layer 1: Convolutional layer with 6 filters of size 5x5, followed by average pooling
model.add(Conv2D(6, kernel_size=(5, 5), activation='relu', input_shape=input_shape))
model.add(AveragePooling2D(pool_size=(2, 2)))

# Layer 2: Convolutional layer with 16 filters of size 5x5, followed by average pooling
model.add(Conv2D(16, kernel_size=(5, 5), activation='relu'))
model.add(AveragePooling2D(pool_size=(2, 2)))

# Flatten the feature maps to feed into fully connected layers
model.add(Flatten())

# Layer 3: Fully connected layer with 120 neurons
model.add(Dense(120, activation='relu'))

# Layer 4: Fully connected layer with 84 neurons
model.add(Dense(84, activation='relu'))

# Output layer: Fully connected layer with num_classes neurons (e.g., 10 for MNIST)
model.add(Dense(num_classes, activation='softmax'))

Summary

VGG16 Vs LeNet-5, which architecture to choose from?

Complexity: VGG16 is a deep convolutional neural network with 16 layers (including convolutional and pooling layers) and a large number of parameters. It is more suitable for complex image classification tasks with large datasets.

LeNet-5 is a shallow convolutional neural network with only 5 layers, making it less complex compared to VGG16. It is suitable for simpler image classification tasks with smaller datasets.

Pretraining: VGG16 is pretrained on the ImageNet dataset, which contains millions of images across thousands of categories. If your task is similar to ImageNet, using VGG16 as a feature extractor or fine-tuning it on your dataset can yield good results.

LeNet-5 was originally designed for handwritten digit recognition on the MNIST dataset. If your task is similar to MNIST (e.g., digit recognition, simple pattern recognition), LeNet-5 can be a good choice.

Image Size: VGG16 expects input images to have a minimum size of 32x32 pixels. It performs better with larger images, typically 224x224 pixels, due to its deeper architecture and larger receptive fields.

LeNet-5 is designed for small grayscale images of size 28x28 pixels. It is less suitable for larger or more complex images due to its limited capacity and smaller receptive fields.

Computational Resources: Training VGG16 from scratch or fine-tuning it on large datasets requires significant computational resources (GPU, memory, and time).

Training LeNet-5 is computationally less demanding compared to VGG16, making it suitable for environments with limited computational resources.
